GHS BS5609-Compliant Label Printing Solution

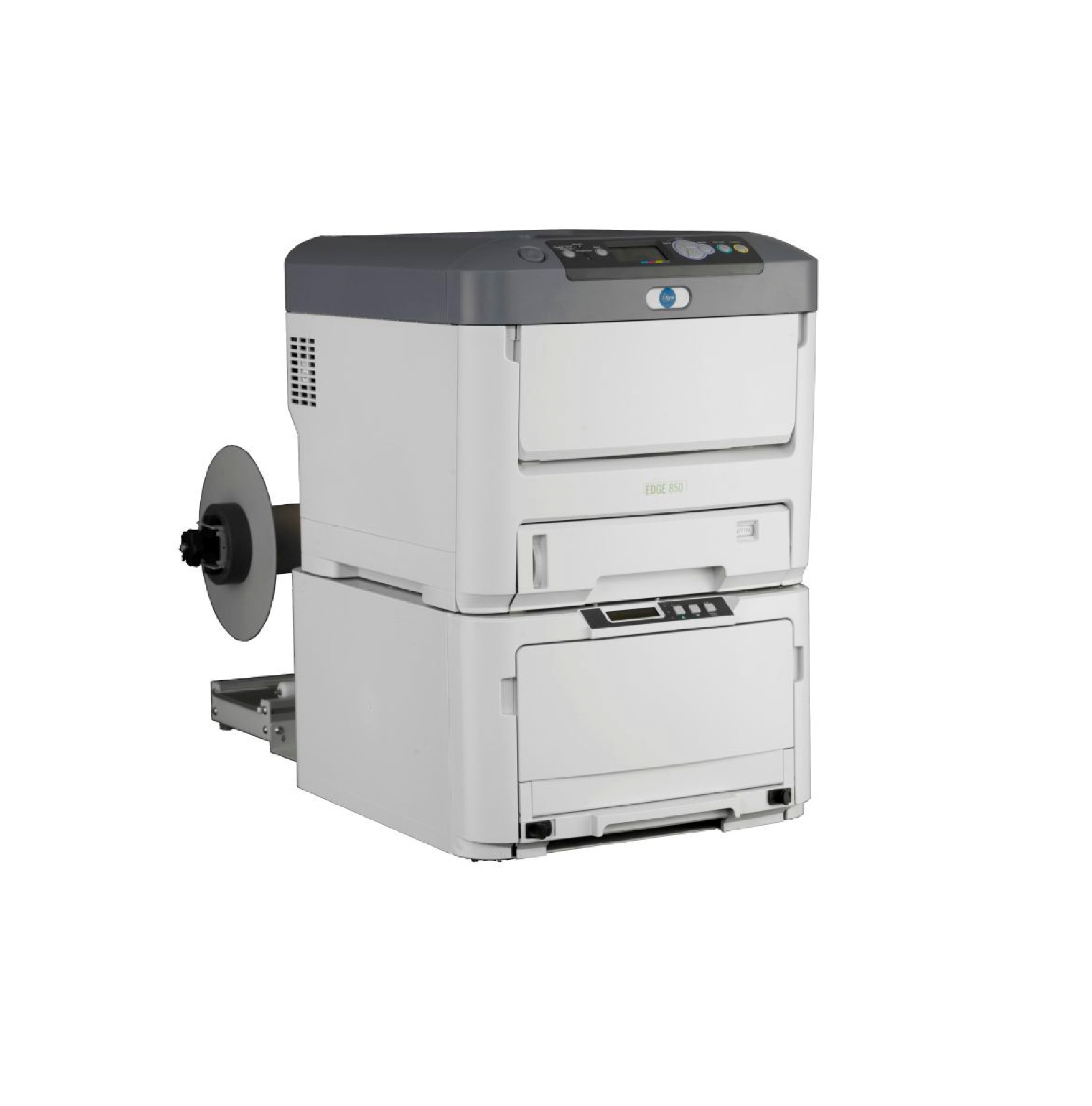

The EDGE 850 roll to roll digital label printer is ideal for printing full color GHS BS5609-compliant chemical and drum labels on demand. Die-cut labels printed on the EDGE 850 deliver outstanding stability and resistance to water, chemicals, fading and smudges when exposed to the harshest of elements. As a result, the EDGE 850 will allow users to eliminate the need for ordering pre-printed labels, reduce inventory and wait times, and allows users to customize each label with variable information in full color - all in a single pass.




GHS BS5609-Compliant Label Printing Solution Featured at Labelexpo Europe 2015

Mark Hopkins, President of iSys Label, presents the latest developments in short run digital label printing. iSys Label has released their newest software plug-in that provides users with the ability to print using white toner and the ability to print and cut individual BS5609 compliant labels for the hazardous materials market.


ghs_bs5609_label

Customer Benefits

  • One process solution; load blank labels and print everything in full color, all in one step
  • Producing labels in-house will reduce the overall cost per label
  • Eliminate the need to order pre-printed labels
  • Reduce inventory and wait times for labels
  • Versatility; ability to print a variety of label sizes with roll widths ranging from 3-8.5” wide
  • Print speeds of 4.33 m/min and upwards, which is 15 8.5x11 labels per minute.
  • Prints labels up to 52 inches long
  • Labels in roll format can be applied utilizing an automatic application system
  • Real time lot/batch identification and tracking using optional iVDP software

critical_deadlines_ghs

GHS, BS5609 and IMDG Certification

The Globally Harmonized System of Classification and Labeling of Chemicals (GHS) is an international system that was created by the United Nations and ensures global consistency for the labeling of dangerous goods.

British Marine standard BS5609 is a requirement for self adhesive drum labels needing International Maritime Dangerous Goods (IMDG) certification for shipment. These standards set out various criteria for label durability when dangerous goods are being transported in marine environments. It stipulates that the drums and containers used to contain the hazardous goods, be durably marked and remain identifiable for at least 3 months being immersed in the sea.

In order to print fully-compliant drum and chemical labels the facestock, adhesive and printed graphic all need to meet the requirements for sections 1, 2 and 3 of the BS5609 standards.  In addition, the graphics of the labels must comply by utilizing the standardized black and red pictogram system accompanied with the precautionary text layouts.



The Thing You Must Ask Yourself: Am I Really Compliant?

Most manufacturers believe that they are fully compliant by simply using compliant label materials.  This is not the case.

It is not sufficient for a chemical manufacturer to simply use compliant label facestock.  To print chemical labels that meet full International Marine Dangerous Goods (IMDG) compliance the media, the adhesive and the printed image all have to pass Sections 1, 2 and 3 of BS5609 certification.

GHS_BS5609_label_printer

Section 1 Compliance: Provides an overview of BS5609 and a description of the general requirements and actions that need to take place, including the use of specific pictograms and text laid out to convey the hazardous information.

Section 2 Compliance: Outlines the requirements for testing the blank label's base material, which includes the adhesive on the back on the material. Testing procedures include exposing to artificial weathering (salt spray & sunlight), dimensional stability and adhesion.  When a label is Section 2 compliant, it means only the blank label is BS5609 Section 2 compliant.

Section 3 Compliance: The difference between Section 2 and Section 3 is that the printed label is tested, whereas Section 2 is only testing the blank label stock. With Section 3 compliance, labels are tested for abrasion resistance and permanence of print. This test must be done using the exact substrate that has passed Section 2, as well as the printer and proper settings used for printing. The requirement is that the printed label survives at least three months immersed in seawater, can be removed and is still legible. This test must be passed successfully before a label can called BS5609 compliant.


Teslin® SP700PR for Low-Static Label Printing

Teslin® SP700PR+ TSP-1 is now BS5609- Section 3 approved to run on iSys Label’s EDGE 850. The materials extreme durability and static-dissipation make it an ideal label solution for production facilities where static may be a concern.  For more information on how to get BS5609-approved Teslin® labels for your EDGE 850, please email ghs@isys-label.com

The science behind Teslin® substrate makes its unique among synthetic papers and printable plastic substrates. While other products offer comparable individual benefits, none offer them all together in such a versatile, adaptable, innovative package.

Benefits of Using Teslin®

  • Static-dissipation – many substrates are vulnerable to static build-up. The micropores in Teslin® substrate naturally absorb and dissipate static, reducing the potential for electrical discharge.
  • Durability - extremely resistant to chemicals, abrasion, moisture and temperature extremes
  • The material is highly bondable – readily absorbs toner which bonds printed text, graphics and photos to its surface nearly instantaneously
  • High conformability – the materials flexibility enables it to resist tearingand allows it to conform to rough, fluid or uneven surfaces
  • Thermal stability – Teslin® substrate remains pliable in temperatures from -70°C/-94°F to 180°C/-356°F, even during prolonged exposure or rapid temperature change. Unlike Teslin®, other synthetics may before brittle or melt when exposed to elevated temperatures

>>> Find out more information why Teslin® is the superior choice for durable labeling

Teslin® and iSys Label’s labeling solutions have been independently tested and certified by the laboratories at PIRA (Print Industry Research Association). Certificate can be found here.


EDGE2Print Software

EDGE2Print is a full featured, easy-to-use software package that was developed exclusively for the company’s short to mid run digital label printers. The EDGE2Print software enables users to drag and drop their label graphic, select the exact quantity needed and press print. By combining this short run digital label printer with the easy-to-use software, users can print their chemical or drum label on die-cut substrates and have the labels ready for immediate application that day.

EDGE 850MP - Driver Option

The EDGE 850 MP is a driver-based solution for roll to roll and roll to cut printing. Users will be able to print individual labels as they need them and automatically have them cut afterwards, making it ready for hand application. Users of the driver will be capable of printing their label graphics straight from various Windows applications, allowing for a fully integrated internal workflow solution.
